Standard Cartridge Filter Housings

Connect with an Expert

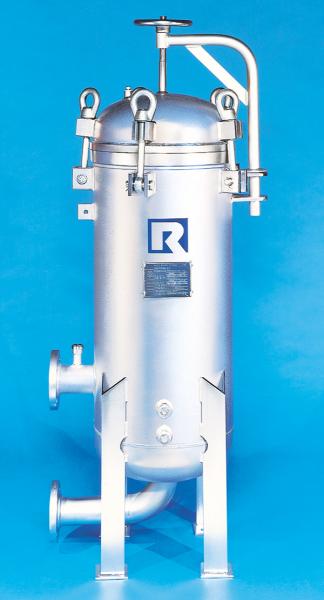

Click image to enlarge

These Rosedale filter housings use the industry standard, 2.6 inch diameter x 10, 20, 30 or 40 inch long filter cartridges. This series offers a wide range of flow capacities and contaminant holding capabilities. Our filter housings can accommodate from 1 to 205 cartridges around. All cartridge housings can be supplied with an ASME code stamp, if required.

Standard Features
  • Low pressure drop
  • Permanently piped filter housing open without special tools or disturbing the piping
  • Machined cover gasket groove provides positive O-ring sealing
  • Easy to clean
  • In-line inlet and outlet
  • Stainless steel internals
  • 2 outlet styles
  • Carbon steel, 304 or 316 stainless steel housings
  • ASME code stamp
  • O-ring seals: Buna N, EPR, Fluoroelastomer, PTFE
  • Accommodates 10, 20, 30 or 40-inch cartridges
  • Flanged connections for 3/4 through 12-inch pipe
  • V posts or threaded center posts
  • Units accept DOE or 222 style cartridges

How They Work
Unfiltered fluid enters the cartridge filter housing and is distributed evenly around the cartridges, from outside to inside. Solids are collected on the outside for easy removal. The filtered fluid then exits through the outlet pipe.
