Sorbent Containment System

Specification PDF PDF Connect with an Expert
Click image to enlarge

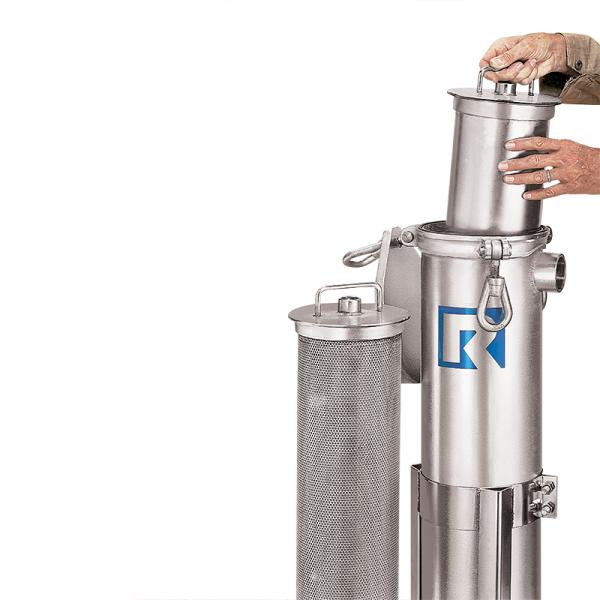

Activated Carbon Containment Baskets

Sorbent-Holding Baskets are made in two styles: the RS, for recirculating systems, and the SP, for single-pass systems.

  • Baskets are made of 304 stainless steel construction.
  • Easily refilled with sorbents such as activated carbon.
  • The granules are retained by 100-mesh wire screening.
  • These baskets can also be filled with materials other than activated carbon such as deionizing resin beads, silica gels, alumina, green sand, and odorizing agents.
  • Activated Carbon Packs are pre- measured amounts of 20 x 50-mesh-size activated carbon.
  • Easy Access to refill adsorbent - Spin-on cover, a solid plate with central opening.
  • Perforated and mesh lined column and outer cylinder.
  • Solid plate bottom.





Activated Carbon Containment Baskets

Sorbent-Holding Baskets are made in two styles: the RS, for recirculating systems, and the SP, for single-pass systems.

  • Baskets are made of 304 stainless steel construction.
  • Easily refilled with sorbents such as activated carbon.
  • The granules are retained by 100-mesh wire screening.
  • These baskets can also be filled with materials other than activated carbon such as deionizing resin beads, silica gels, alumina, green sand, and odorizing agents.
  • Activated Carbon Packs are pre- measured amounts of 20 x 50-mesh-size activated carbon.
  • Easy Access to refill adsorbent - Spin-on cover, a solid plate with central opening.
  • Perforated and mesh lined column and outer cylinder.
  • Solid plate bottom.



Uses of carbon absorption include:

  • Purification of sugar syrups, liqueurs, glycerin, pharmaceuticals, etc.
  • Treatment of water to remove chlorine and odor, and improve color and taste.
  • Purification of process effluents, per EPA requirements.
  • Drying, degumming, and decolorization of fuel and lubricants, organic solvents, vegetable oil, and animal fats.

Need Help?

Click here to view our application and size chart to determine exactly what you need. If you have questions call us at 800.821.5373.

From the drop down menus choose the Rosedale Filter Housing SeriesBasket Size, Type of basket and Material of construction.
