High Flow Filter Cartridges

Specification PDF PDF Connect with an Expert
Click image to enlarge

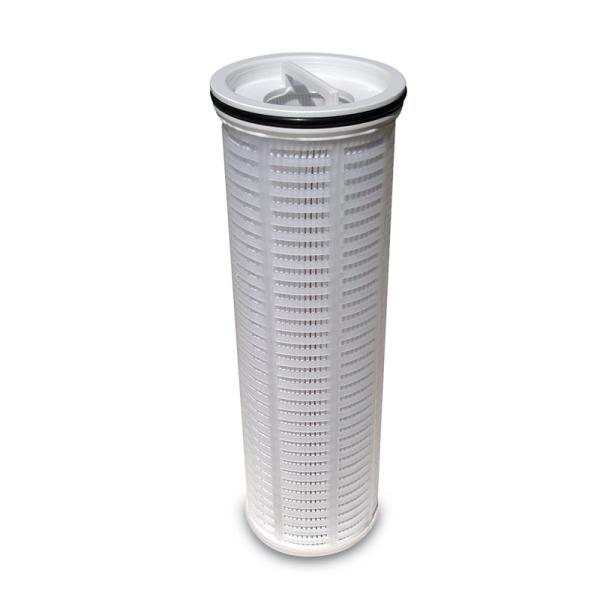

The DPU-600 High Flow Filter Cartridge provides effective surface area within the space of a standard 6”diameter cartridge enabling maximized flow through the unit. The DPU-600 High Flow Series Cartridge has a positive O-ring seal for maximum efficiency. DPU-600 cartridges fit Rosedale Model H8 through H48 housings using “S” style cartridges.

Rosedale Products is an expert on high quality, industrial filtration solutions. We can help you find the cost-effective filter systems and products you need to maximize efficiency and reduce labor costs. Use our application worksheet to find the products best suited to your requirements or contact us to speak to an expert. Request a quote today.





The DPU-600 High Flow Filter Cartridge provides effective surface area within the space of a standard 6”diameter cartridge enabling maximized flow through the unit. The DPU-600 High Flow Series Cartridge has a positive O-ring seal for maximum efficiency. DPU-600 cartridges fit Rosedale Model H8 through H48 housings using “S” style cartridges.

Rosedale Products is an expert on high quality, industrial filtration solutions. We can help you find the cost-effective filter systems and products you need to maximize efficiency and reduce labor costs. Use our application worksheet to find the products best suited to your requirements or contact us to speak to an expert. Request a quote today.




Features of the High Flow Cartridge Filter

These cartridges are easily changed out through the hinged cover of the High Flow Filter Housing. The cartridge you need will depend on several factors such as diameter, micron rating, material, element length, and seal material. Features of the DPU-600 High Flow Filter Cartridge include:
  • Outside diameter – 6.00” (152.4 cm)
  • Inside diameter – 3.00” (76.2 cm)
  • Length – 20”, 40”, and 60” (508, 1016, 1524 cm)
  • Filter media: polypropylene, cellulose, nylon micro-fiberglass, and polyester
  • Removal ratings (microns): 0.5, 1, 5, 10, 20, 40, 70 @ Beta 5000 (99.98% efficiency)
  • O-ring cap diameter: 6.32 inch
  • O-ring material: EPR, fluoroelastomer, Buna Nitrile

High Flow Filter Applications

High flow filters process liquids at a much higher rate than standard filtration systems. Our high flow filters have a convenient design that maximizes ease of operation and cartridge change-out, while reducing the system’s footprint by creating less waste. Increased dirt-holding capacity makes these filters and cartridges well suited to a variety of industries and applications, including:
  • Food & beverage
  • Industrial processing
  • Municipal water filtration
  • Industrial & commercial water filtration
  • High purity water filtration
  • Paint & ink filtration
  • And more

Contact Rosedale Products for DPU-600 Series High Flow Filter Cartridges

Rosedale Products is a leading supplier of innovative industrial filtration solutions for a variety of applications. Browse all filter cartridges or request a quote today on our high flow options. Contact us for more information.
