Multi Bag Filter Housings
When you need a filter housing that can handle significant, large-volume flows, multi-bag filter vessels are well-suited to your industrial or commercial needs. Rosedale Products’ multi-basket bag filter housings offer a wide range of flow capacities and contaminant holding capabilities. They contain between 2 - 23 baskets, and the standard pressure rating for all models is 150 PSI. If required, all multi-bag filter housings can be supplied with an ASME code stamp.
Features & Specifications for Multi-Bag Filter Vessels
Our competitively priced, top-of-the-line multi-bag filter housings can handle any job. We offer several design options with various features to satisfy the strictest industrial demands. These features include, but are not limited to:- Permanently piped housings without tools or disturbing the piping
- Machined cover gasket groove with positive O-ring sealing
- Housing construction options: Carbon steel, 304 or 316 stainless steel
- Large-area, 30-inch deep, 9/64 inch perforated baskets
- Cover seal material options: Buna N, Ethylene Propylene, Fluoroelastomer, and PTFE
- Flanged connections for 2 through 12-inch pipe
- And more!
Quick Access Cover
Low Profile Design
Low Profile Design (SLP) housings are compact, space-saving options that allow for easy bag change-out. A reduced standard operating height eliminates platforms and ladders for a safer design. The SLP is manufactured in any housing version, including our standard davit arm cover, QAC design, and spring-assisted hinged cover.Spring Assisted Hinge Cover
Spring Assisted Hinged Cover (HLP) housings open and close without effort. Simply loosen the swing bolts and lift the cover to open. An automatic cover stop is provided. This design saves time by eliminating the handwheel.Standard Housing Design

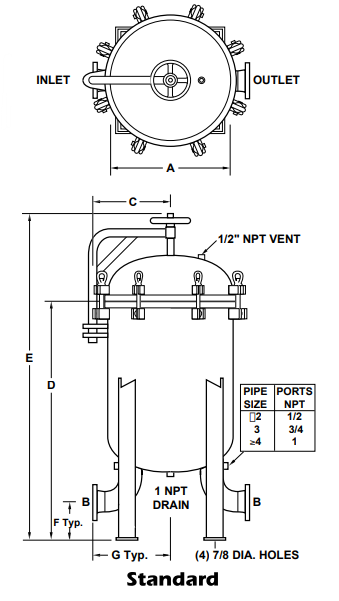

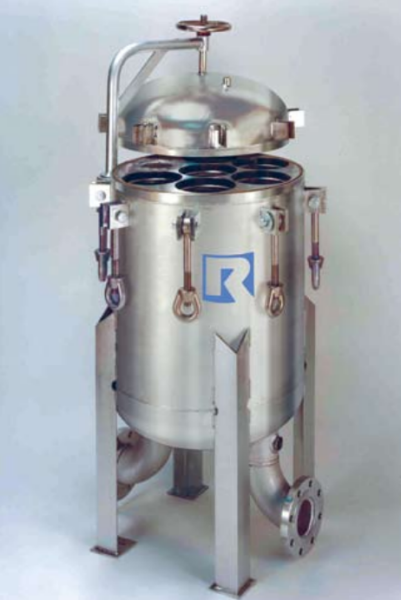

Standard Housing Design (STD) multi-bag filter vessels are durable and economical. It includes a davit arm and handwheel to facilitate cover removal. This multi-bag filter housing is our most versatile housing design, offering various options, including our low-profile design.Duplex Multi-Filter Systems
All multi-filter housing models described here are also available as duplex filtration systems. Two units come piped together with valves to permit continuous use of either unit while servicing the other. One lever actuates all valves simultaneously, or it can be ordered with automatic sequencing.Duplex multi-filter housing special options are:
- Higher pressure ratings
- Corrosion allowances
- Steam jackets
- Hydraulic cover lifting assembly
- Sanitary fittings
- Differential pressure indicators
- And many more.
Industry-Leading Experts
Rosedale Products is your trusted source for all advanced liquid and gas filtration system needs. We produce exceptional liquid filtration systems and waste minimization components, including high-performance solutions for many industries. From our headquarters in Ann Arbor, Michigan, we create custom filter housing solutions that meet your specifications. In addition to our multi-bag filter vessels, we offer:- Single Bag Filter Housings
- Cartridge Filter Housings
- Custom Single Bag Filter Housings
- And many other options.
Contact Rosedale for High-Quality Multi Bag Filter Housings Today
Our technicians are standing by to help you build the perfect custom filtration system with the best multi-bag filter housing for your job. Contact us today for more information regarding our products and services.
