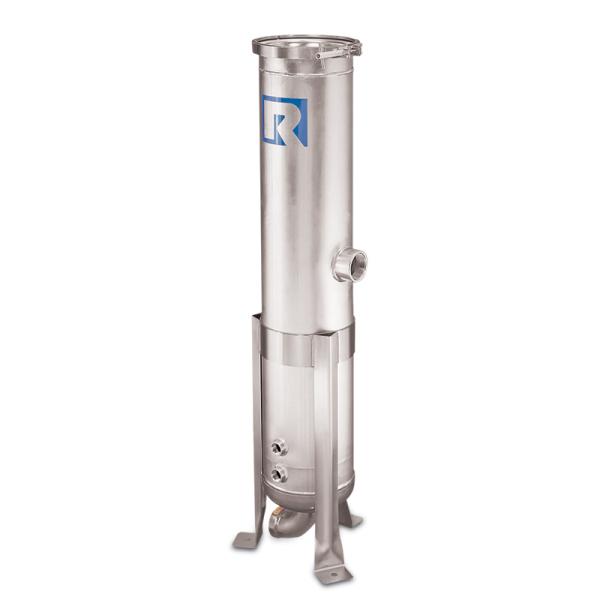

Model LCO Stainless Steel Bag Filter Housings
- Maximum flow rate of up to 100 GPM
- LCO6-18 accepts a size 8 filter bag
- LCO8-30 accepts a size 12 filter bag
- Clamp cover
- Maximum 2" NPT connections
Model LCO Single Bag Filter
Low cost filter housings for flow rates to 100 gpm*
Not Sure What You Need?
Check out our application worksheet for some general rules of thumb or tell us what specifications you need and we'll help you find the filter housing to match!
LCO Series high-capacity bag filters are low in cost and offer more dirt holding capacity. These housings are made from carbon steel or stainless steel. They use a newly designed clamp cover that is easily removed, reducing time spent on cleaning and bag replacement. LCO Housings also utilize our Unistyle design offering the option of a side or bottom outlet. There is an inlet and outlet on the side, with a plugged drain at the bottom of the housing. The outlet can easily be changed to the bottom by merely moving the plug from the drain to the side outlet.
Stainless Steel Bag Filter Housing Features
- Permanently piped housings are opened without special tools
- Quick opening cover
- Carbon or stainless steel housings
- Large area bag and basket for greater dirt-holding capacity
- O-ring seals: Buna N, EPR and Fluoroelastomer
- Adjustable-height tripod legs
- 125 psi rated housing
- Basket material is compatible with housing
- Bag surface area is 5.6 square feet (LCO 8 filter), and 2.0 square feet (LCO 6 filter)
- Uses number 12 size bags (LCO 8 filter), and number 8 size bags (LCO 6 filter)
- 2-inch NPT ports (LCO 8 filter), and 1-1/2-inch ports (LCO 6 filter)
*Based on housing only. Fluid viscosity, filter bag used, and expected dirt loading should be considered when sizing a filter.
