Custom Model 6 Basket Strainers and Bag Filters

Specification PDF PDF Connect with an Expert
Click image to enlarge

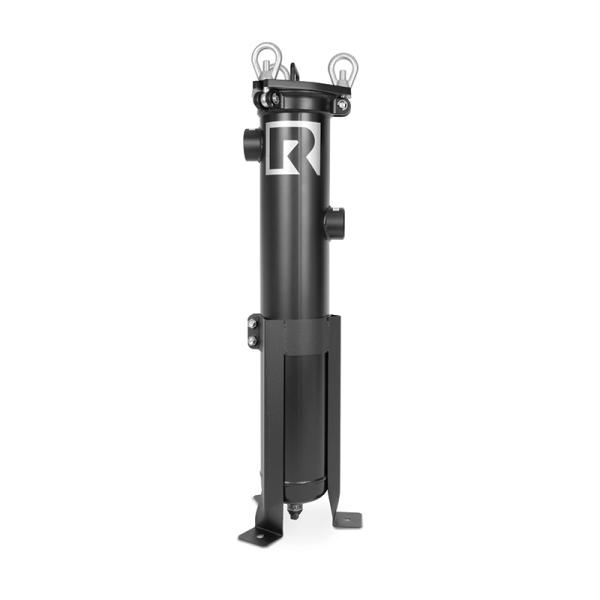

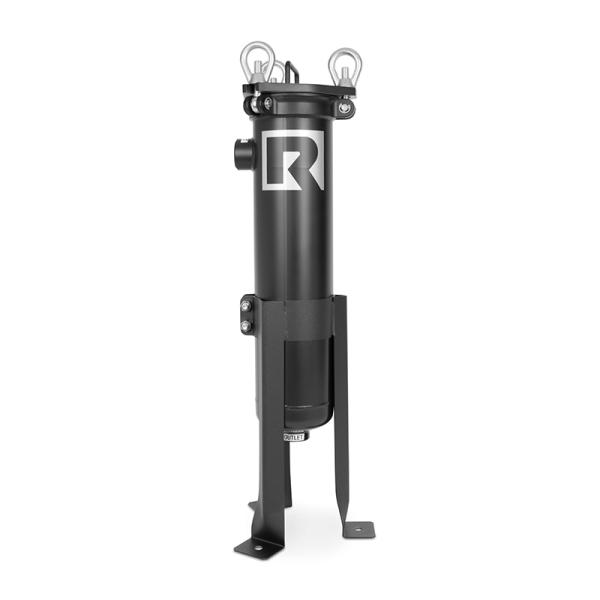

Features of a Model 6 Filter Housing:
  • Maximum flow rate of 100 GPM
  • Model 6-18 accepts size 8 filter bags
  • Model 6-30 accepts size 9 filter bags
  • Clamp or eye-bolt lid
  • Maximum 3" NPT connections
  • ASME Code option available
Part Number:
Quantity:

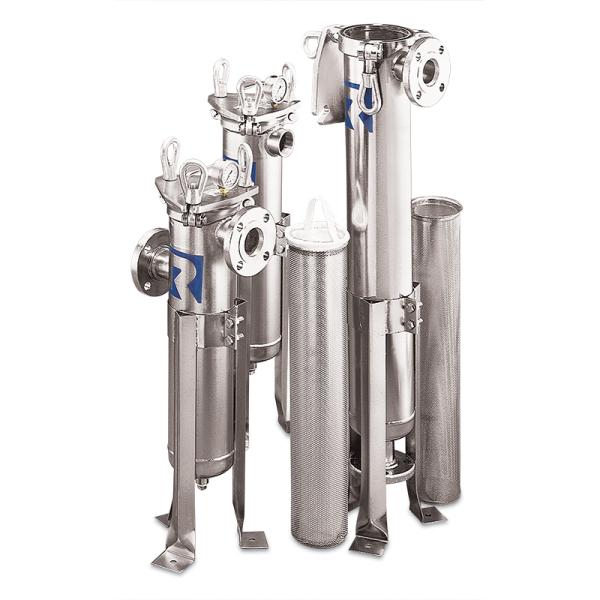

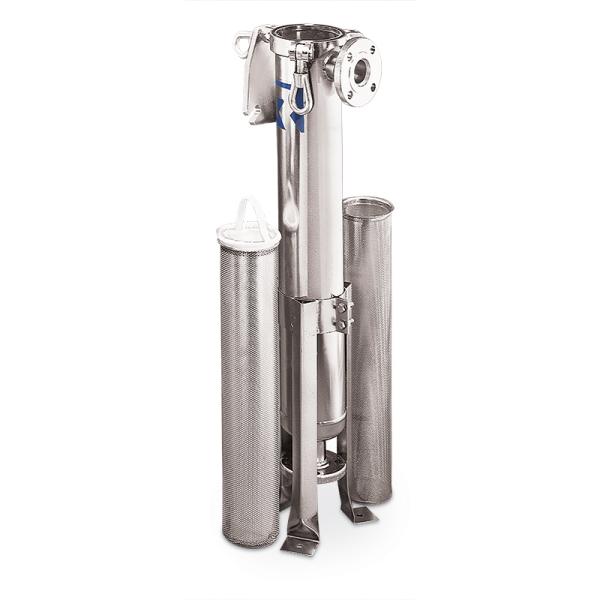

Model 6 Basket Strainer and Bag Filters
Model 6 strainer/filter housings are made in 3 sizes and 3 pressure ratings, and can serve as basket strainers (for particle retention down to 74 micron size) or as bag filters (for particle retention down to 1 micron size). In all cases, covers are easily removed without special tools, and the basket or bag is easily cleaned or replaced.

Features of Model 6 Basket Strainers
  • Low pressure drops
  • Covers are O-ring sealed
  • Carbon steel, or stainless steel (304 or 316) construction for vessels
  • All vessels are electropolished to resist adhesion of dirt and scale
  • Adjustable-height legs, standard
  • O-ring seals: Buna N, EPR, Fluoroelastomer, PTFE
  • ASME code stamp available
  • Two pressure ratings: 150 or 300 psi
  • Three basket depths: 12, 18, or 30 inches (nominal)
Options for Model 6 Bag Filters
  • Duplex units available
  • Special alloy options
  • Sanitary construction
  • Different outlet connections
  • Higher pressure ratings
  • Extra-length legs
  • Heat jacketing
  • Liquid displacers for easier servicing
