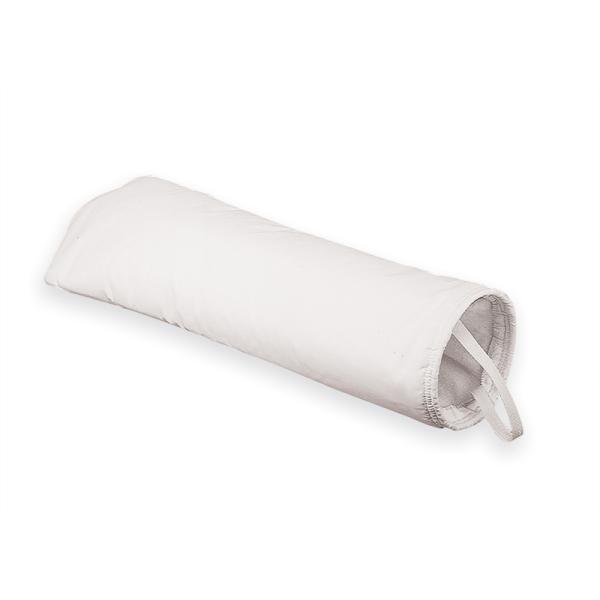

HL Series Extended Life Filter Bags

Specification PDF PDF Connect with an Expert
Click image to enlarge
Our HL Series bags are extended life fillter bags that have up to 3 times the dirt holding capacity of standard filter bags at the equivalent micron ratings. These multi layer bags are constructed with 2 gradient layers of felt separated by a transfer/caking filter layer. The initial layer is for pre-filtration and the final layer is an anti media migration layer. HL Series bags have a molded top flange or stainless steel ring to ensure a positive seal with the filter housing.  RPE/RPO top bags offer the best bag-to-housing seal in today's marketplace.  95% efficiency ratings at 20, 40, 70, and 125 microns are equivalent to industry grades 1/2, 1, 20, and 50 microns respectively. They are offered in polyester or polypropylene material.

Choose your Material from the drop down menus and either Poly flange for Rosedale housings, or Ring style bags to fit in any manufacturers' filter housings. Micron ratings are performance at 95% efficiency.  Size tab reflects industry standard bag size number.

Our HL Series bags are extended life fillter bags that have up to 3 times the dirt holding capacity of standard filter bags at the equivalent micron ratings. These multi layer bags are constructed with 2 gradient layers of felt separated by a transfer/caking filter layer. The initial layer is for pre-filtration and the final layer is an anti media migration layer. HL Series bags have a molded top flange or stainless steel ring to ensure a positive seal with the filter housing.  RPE/RPO top bags offer the best bag-to-housing seal in today's marketplace.  95% efficiency ratings at 20, 40, 70, and 125 microns are equivalent to industry grades 1/2, 1, 20, and 50 microns respectively. They are offered in polyester or polypropylene material.

Choose your Material from the drop down menus and either Poly flange for Rosedale housings, or Ring style bags to fit in any manufacturers' filter housings. Micron ratings are performance at 95% efficiency.  Size tab reflects industry standard bag size number.
